New Topology Diagram

New Topology Diagram
Di Posting Oleh : Simple Learning
Kategori : Topology

After a looong hiatus regarding my blog updates I come back with new set of mini labs and new topology.

Please, watch the video introduction to get familiar with some changes in the blog.


My Dynamips (Dynagen) LAN connections look like shown below:

Pic. 1 - LAN Connections.

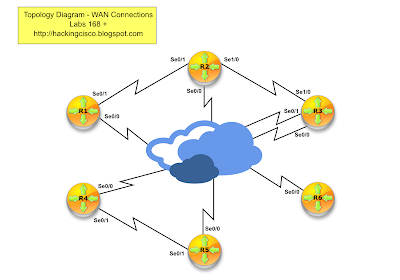

WAN links in my labs look as shown in the pic. 2:

Pic. 2 - WAN Connections.




If you use dynamips+dynagen on Linux (like myself) you might find the following topology file useful (keep in mind I start TWO instances of the dynamips hypervisor to off load the CPU).

MainTopology.net

#################################################
#
# Routing & Switching topology
# Author:   Jarek Rek
# Revision: 7 June 2012
# WWW:      http://hackingcisco.blogspot.com

#################################################

#################################################
#
# Define global router parameters for instance 1
#
#################################################

autostart=false
[localhost:7200]

workingdir = /home/jr/dynagen/labs/working

[[3725]]
 #
 # Specify 3725 IOS image:
 image = /home/jr/dynagen/ios/c3725-advipservicesk9-mz.124-15.T13.extracted.bin
 #
 ram = 128
 disk0 = 16
 disk1 = 0
 # Idlepc value
 idlepc = 0x60bc00b8
 mmap = true
 ghostios = true


###########################
#
# Define router instances
#
###########################

 [[Router R1]]
  model = 3725
  console = 2001
  autostart = false
  F0/0 = SW1 F1/1
  F0/1 = SW2 F1/1
  S0/0 = FRSW 1

 [[Router R2]]
  model = 3725
  console = 2002
  autostart = false
  slot1 = NM-4T
  F0/0 = SW1 F1/2
  F0/1 = SW2 F1/2
  S0/0 = FRSW 2
  S0/1 = R1 S0/1
  S1/0 = R3 S1/0


[[Router R3]]
  model = 3725
  console = 2003
  autostart = false
  slot1 = NM-4T
  F0/0 = SW1 F1/3
  F0/1 = SW2 F1/3
  S0/0 = FRSW 3
  S0/1 = FRSW 13

 [[Router R4]]
  model = 3725
  console = 2004
  autostart = false
  F0/0 = SW1 F1/4
  F0/1 = SW2 F1/4
  S0/0 = FRSW 4
  S0/1 = R5 S0/1


 [[Router R5]]
  model = 3725
  console = 2005
  autostart = false
  F0/0 = SW1 F1/5
  F0/1 = SW2 F1/5
  S0/0 = FRSW 5


 [[Router R6]]
  model = 3725
  console = 2006
  autostart = false
  F0/0 = SW1 F1/6
  F0/1 = SW2 F1/6
  S0/0 = FRSW 6


#################################################
#
# Define global router parameters for instance 2
#
#################################################

[localhost:7201]

workingdir = /home/jr/dynagen/labs/working

[[3725]]
 #
 # Specify 3725 IOS image:
 image = /home/jr/dynagen/ios/c3725-advipservicesk9-mz.124-15.T13.extracted.bin
 #
 ram = 128
 disk0 = 16
 disk1 = 0
 # Idlepc value
 idlepc = 0x60bc00b8
 mmap = true
 ghostios = true

###########################
#
# Define router instances
#
###########################

 [[Router SW1]]
  model = 3725
  console = 2007
  autostart = false
  slot1 = NM-16ESW
  F1/9 = SW3 F1/9
  F1/10 = SW3 F1/10
  F1/11 = SW4 F1/11
  F1/12 = SW4 F1/12
  F1/13 = SW2 F1/13
  F1/14 = SW2 F1/14


 [[Router SW2]]
  model = 3725
  console = 2008
  autostart = false
  slot1 = NM-16ESW
  F1/9 = SW4 F1/9
  F1/10 = SW4 F1/10
  F1/11 = SW3 F1/11
  F1/12 = SW3 F1/12


 [[Router SW3]]
  model = 3725
  console = 2009
  autostart = false
  slot1 = NM-16ESW
  F1/13 = SW4 F1/13
  F1/14 = SW4 F1/14


 [[Router SW4]]
  model = 3725
  console = 2010
  autostart = false
  slot1 = NM-16ESW


 [[Router BB1]]
  model = 3725
  console = 2011
  autostart = false
  F0/0 = SW3 F1/1
  F0/1 = SW4 F1/1

[[Router BB2]]
  model = 3725
  console = 2012
  autostart = false
  F0/0 = SW3 F1/2
  F0/1 = SW4 F1/2

[[Router BB3]]
  model = 3725
  console = 2013
  autostart = false
  F0/0 = SW3 F1/3
  F0/1 = SW4 F1/3

  [[FRSW FRSW]]

  # R1 to FRSW
   1:102 = 2:201
   1:103 = 3:301
   1:104 = 4:401
   1:105 = 5:501
   1:106 = 6:601

  # R2 to FRSW
   2:203 = 3:302
   2:204 = 4:402
   2:205 = 5:502
   2:206 = 6:602

  # R3 to FRSW
   3:304 = 4:403
   3:305 = 5:503
   3:306 = 6:603
   13:314 = 4:413
   13:316 = 6:613

  # R4 to FRSW
   4:405 = 5:504
   4:406 = 6:504

  # R6 to FRSW

***** END OF FILE *****

My next series of mini-labs (starting with Lab 168) will use the above layout until further notice.
