Lab 74 - RIPv2 Manual Summarization

Lab 74 - RIPv2 Manual Summarization
Di Posting Oleh : Simple Learning
Kategori : Core Technologies RIP Routing

Prerequisites: CCNP level skills.

Topology

Pic. 1 - Topology Diagram.

Icons designed by: Andrzej Szoblik - http://www.newo.pl

Task 1
On R5 summarize class C subnets (192.168.1.0/28 and 192.168.16.0/28). Do not use automatic summarization. Do not overlap any other addresses.

Lab Solution

Task 1

On R5 summarize class C subnets (192.168.1.0/28 and 192.168.16.0/28). Do not use automatic summarization. Do not overlap any other addresses.

R5 Configuration:

!

interface FastEthernet1/0
 ip address 10.1.35.5 255.255.255.0
 ip summary-address rip 192.168.1.0 255.255.255.224

!

Verification:

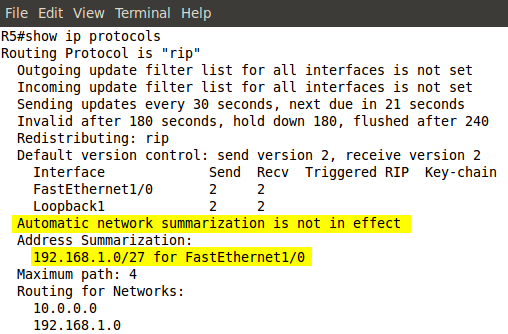

Pic. 2 - RIP Details on R5.

Pic. 3 - R3's Routing Table.
